Steel Weld Yokes

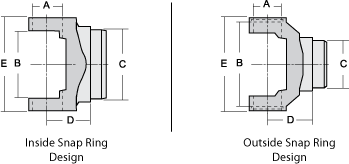

RDL Part Number		 A
Bearing Dia.		 B
Snap Ring Lockup		 C
Butt Dia.		 D
Center Line to Weld
Reference Notes
R10-28-3180 .937 1.500 - (I) 1.018 1.750 Spicer 1000 - Fits 1.25x.120 Tube
R10-28-17 .937 1.500 - (I) 1.628 1.750 Spicer 1000 - Fits 1.75x.065 Tube
R10-28-1005 .937 1.500 - (I) 1.842 2.000 Spicer 1000 - Fits 2.00x.083 Tube
R2-28-3027 1.063 2.438 - (O) 1.268 1.625 Spicer 1210 - Fits 1.50x.120 Tube
R2-28-2697 1.063 2.438 - (O) 1.568 1.625 Spicer 1210 - Fits 1.75x.095 Tube
R2-28-3109 1.063 2.438 - (O) 1.768 1.500 Spicer 1210 - Fits 2.00x.120 Tube
R2-28-2417 1.063 2.438 - (O) 1.844 1.500 Spicer 1210 - Fits 2.00x.083 Tube
R2-28-1947 1.063 2.438 - (O) 2.378 1.312 Spicer 1210 - Fits 2.50x.065 Tube
R2-26-147 1.063 3.217 - (O) .882 2.215 Spicer 1310 - Fits 1.25x.188 Tube
R2-26-347 1.063 3.217 - (O) 1.018 2.215 Spicer 1310 - Fits 1.25x.120 Tube
R2-28-3152 1.063 3.217 - (O) 1.518 1.688 Spicer 1310 - Fits 1.75x.120 Tube
R2-28-3187 1.063 3.217 - (O) 1.568 1.688 Spicer 1310 - Fits 1.75x.095 Tube
R2-28-447 1.063 3.217 - (O) 1.628 1.688 Spicer 1310 - Fits 1.75x.065 Tube
R2-28-1757 1.063 3.217 - (O) 1.768 1.688 Spicer 1310 - Fits 2.00x.120 Tube
R2-28-577 1.063 3.217 - (O) 1.818 1.688 Spicer 1310 - Fits 2.00x.095 Tube
R2-28-357 1.063 3.217 - (O) 1.842 1.688 Spicer 1310 - Fits 2.00x.083 Tube
R2-28-417 1.063 3.217 - (O) 1.878 1.688 Spicer 1310 - Fits 2.00x.065 Tube
R2-28-547 1.063 3.217 - (O) 2.068 1.938 Spicer 1310 - Fits 2.25x.095 Tube
R2-28-367 1.063 3.217 - (O) 2.342 1.844 Spicer 1310 - Fits 2.50x.083 Tube
R2-28-277 1.063 3.217 - (O) 2.378 1.688 Spicer 1310 - Fits 2.50x.065 Tube
R2-28-1617 1.063 3.217 - (O) 2.592 1.688 Spicer 1310 - Fits 2.75x.083 Tube
R2-28-307 1.063 3.217 - (O) 2.628 1.688 Spicer 1310 - Fits 2.75x.065 Tube
R2-28-437 1.063 3.217 - (O) 2.842 1.688 Spicer 1310 - Fits 3.00x.083 Tube
R2-28-327 1.063 3.217 - (O) 2.878 1.688 Spicer 1310 - Fits 3.00x.065 Tube
R2-28-557 1.063 3.217 - (O) 3.128 1.688 Spicer 1310 - Fits 3.25x.065 Tube
R2-28-427 1.063 3.217 - (O) 3.342 1.688 Spicer 1310 - Fits 3.50x.083 Tube
R2-28-397 1.063 3.217 - (O) 3.378 1.688 Spicer 1310 - Fits 3.50x.065 Tube
R2-28-477 1.063 3.217 - (O) 3.842 1.500 Spicer 1310 - Fits 4.00x.083 Tube
R2-28-2777 1.063 3.622 - (O) 1.768 2.120 Spicer 1330 - Fits 2.00x.120 Tube
R2-28-1707 1.063 3.622 - (O) 2.342 1.719 Spicer 1330 - Fits 2.50x.083 Tube
R2-28-3154 1.063 3.622 - (O) 2.592 1.719 Spicer 1330 - Fits 2.75x.083 Tube
R2-28-3153 1.063 3.622 - (O) 2.628 1.719 Spicer 1330 - Fits 2.75x.065 Tube
R2-28-1697 1.063 3.622 - (O) 2.842 1.719 Spicer 1330 - Fits 3.00x.083 Tube
R2-28-1177 1.063 3.622 - (O) 2.878 1.719 Spicer 1330 - Fits 3.00x.065 Tube
R2-28-1717 1.063 3.622 - (O) 3.342 1.812 Spicer 1330 - Fits 3.50x.083 Tube
R2-28-1977 1.063 3.622 - (O) 3.378 1.812 Spicer 1330 - Fits 3.50x.065 Tube
R2-28-3183 1.063 3.622 - (O) 3.842 1.812 Spicer 1330 - Fits 4.00x.083 Tube
R2-28-3787 1.063 3.622 - (O) 3.878 1.812 Spicer 1330 - Fits 4.00x.065 Tube
R2-28-3186 1.063 3.622 - (O) 3.842 1.812 Spicer 1330 - Fits 5.00x.083 Tube
R26-28-3152 1.078 2.125 - (I) 1.518 1.688 Detroit 7260 - Fits 1.75x.120 Tube
R26-28-3155 1.078 2.125 - (I) 1.568 1.688 Detroit 7260 - Fits 1.75x.095 Tube
R26-28-447 1.078 2.125 - (I) 1.628 1.688 Detroit 7260 - Fits 1.75x.065 Tube
R26-28-1757 1.078 2.125 - (I) 1.768 1.688 Detroit 7260 - Fits 2.00x.120 Tube
R26-28-357 1.078 2.125 - (I) 1.842 1.688 Detroit 7260 - Fits 2.00x.083 Tube
R26-28-417 1.078 2.125 - (I) 1.878 1.688 Detroit 7260 - Fits 2.00x.065 Tube
R26-28-367 1.078 2.125 - (I) 2.342 1.688 Detroit 7260 - Fits 2.50x.083 Tube
R26-28-277 1.078 2.125 - (I) 2.378 1.844 Detroit 7260 - Fits 2.50x.065 Tube
R26-28-1617 1.078 2.125 - (I) 2.592 1.844 Detroit 7260 - Fits 2.75x.083 Tube
R26-28-307 1.078 2.125 - (I) 2.628 1.688 Detroit 7260 - Fits 2.75x.065 Tube
R26-28-437 1.078 2.125 - (I) 2.842 1.688 Detroit 7260 - Fits 3.00x.083 Tube
R26-28-327 1.078 2.125 - (I) 2.878 1.688 Detroit 7260 - Fits 3.00x.065 Tube
R26-28-557 1.078 2.125 - (I) 3.128 1.688 Detroit 7260 - Fits 3.25x.065 Tube
R26-28-427 1.078 2.125 - (I) 3.342 1.688 Detroit 7260 - Fits 3.50x.083 Tube
R26-28-397 1.078 2.125 - (I) 3.378 1.688 Detroit 7260 - Fits 3.50x.065 Tube
R26-28-477 1.078 2.125 - (I) 3.742 1.500 Detroit 7260 - Fits 4.00x.083 Tube
R26-28-3163 1.078 2.125 - (I) 3.878 1.688 Detroit 7260 - Fits 4.00x.065 Tube

Yokes with larger bearing caps (cont.)
